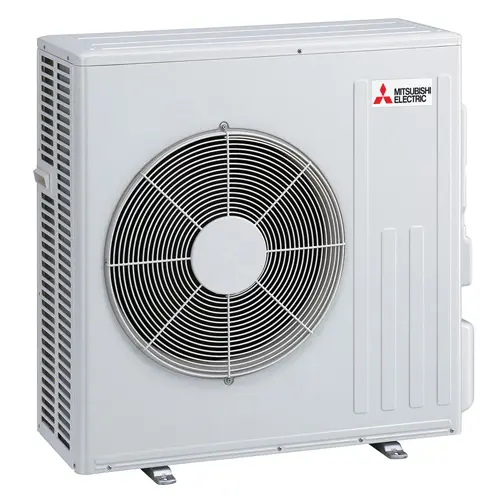

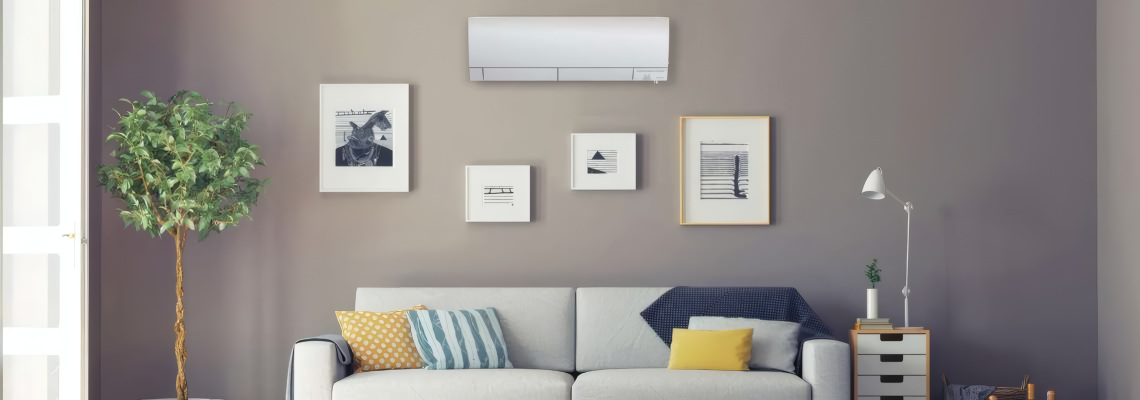

Enjoy room by room comfort with Mitsubishi Electric M-Series. Go Ductless Inc. installs it cleanly for quiet, year round performance.
Mitsubishi Electric M-Series is a strong fit for residential and light commercial spaces, offering quiet, efficient comfort with single zone and multi zone options. Go Ductless Inc. helps you choose the right Mitsubishi mini split units and completes clean Mitsubishi mini split installation for Mitsubishi ductless AC and Mitsubishi ductless heating and cooling.
Go Ductless Inc. focuses on Mitsubishi Electric M-Series ductless units, offering a wide range of cooling only and heat pump systems designed for efficient comfort. With options that can fit many room sizes and layouts, we help you choose the right setup for your home or light commercial space.
Mitsubishi Electric ductless systems are available in single zone and multi zone configurations, making it easier to bring room by room control to almost any property. Warranty coverage depends on the product and installation details, and we will explain what applies to your system during your estimate.
For larger commercial needs, ask our team about advanced multi zone options and heavier duty system solutions.
Go Ductless Inc. is a trusted choice for professional installation of Mitsubishi Electric ductless mini split systems. Our team is trained and experienced, and we focus on clean workmanship, safe setup, and reliable performance from day one.
We take time to plan the right system size for your space so your Mitsubishi mini split runs efficiently and delivers steady comfort. With careful placement and proper commissioning, you get better heating and cooling control and long term reliability.
We also walk you through the controls, recommended settings, and basic care tips after installation, so you feel confident using your system right away. If you ever need service later, our team is available for support and ductless maintenance to help keep your Mitsubishi system performing season after season.
At Go Ductless Inc., we focus on quality workmanship, safe installation, and customer satisfaction on every Mitsubishi Electric M-Series project. You can expect clear communication, clean finishing, and a system that is tested before we leave.
We offer no obligation in home estimates and straightforward recommendations based on your layout and comfort goals. Warranty coverage varies by product and installation details, and we will explain your options during your quote.
From the first visit to the final walkthrough, our goal is to make your upgrade simple and stress free. If you are considering a Mitsubishi ductless heat pump or Mitsubishi ductless air conditioner for your home or light commercial space, our team is ready to help you choose the right setup and install it with care.
Mitsubishi Electric M-Series ductless systems are built for quiet, efficient comfort with flexible options for different rooms and layouts. Below are a few key features that help deliver steady heating and cooling, cleaner airflow, and smarter control for everyday comfort.

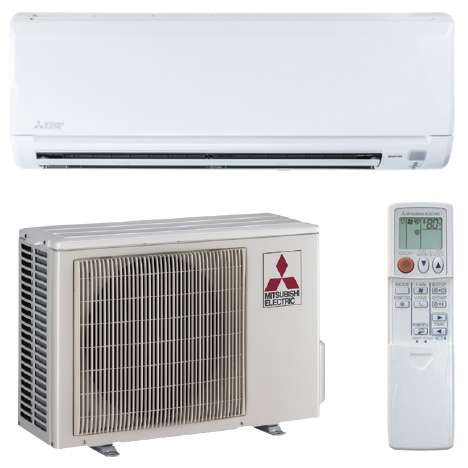

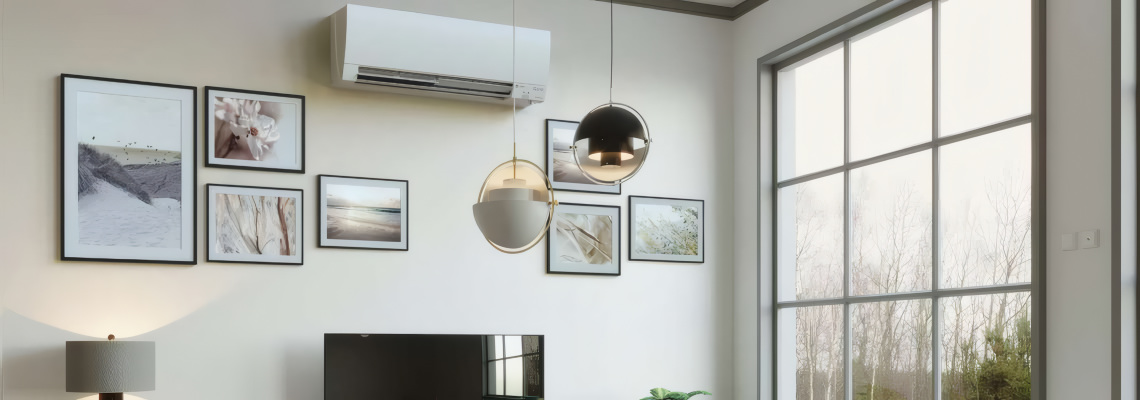

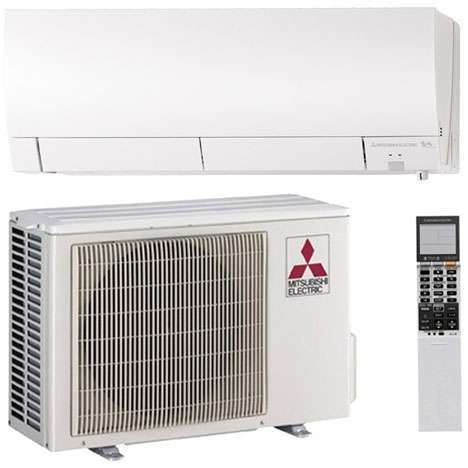

| Model | FS06 [½ ton] | FS09 [¾ ton] | FS12 [1 ton] | FS15 [1¼ ton] | FS18 [1½ ton] |
|---|---|---|---|---|---|
| Indoor Unit Model | MSZ-FS06NA | MSZ-FS09NA | MSZ-FS12NA | MSZ-FS15NA | MSZ-FS18NA |
| Outdoor Unit Model | MUZ-FS06NAH | MUZ-FS09NAH | MUZ-FS12NAH | MUZ-FS15NAH | MUZ-FS18NAH |
| Cooling Capacity (Btu/h) (Min to Max) | 1,700 to 9,000 | 1,700 to 12,000 | 2,500 to 13,600 | 6,450 to 19,000 | 6,450 to 21,000 |
| Heating Capacity (Btu/h) (Min to Max) | 1,600 to 14,000 | 1,600 to 18,000 | 3,700 to 21,000 | 5,150 to 24,000 | 5,150 to 30,000 |
| ENERGY STAR® Certified | Certified | Certified | Certified | Certified | Certified |
| SEER | 33.1 | 30.5 | 26.1 | 22.2 | 21 |
| HSPF (IV) | 12.5 | 12.5 | 12 | 12 | 12 |
| Power Supply | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz |
| Outdoor Temperatures for Cooling (Min to Max) | -10 to 46°C | -10 to 46°C | -10 to 46°C | -10 to 46°C | -10 to 46°C |
| Outdoor Temperatures for Heating (Min to Max) | -25 to 24°C (Hyper Heat) | -25 to 24°C (Hyper Heat) | -25 to 24°C (Hyper Heat) | -25 to 24°C (Hyper Heat) |

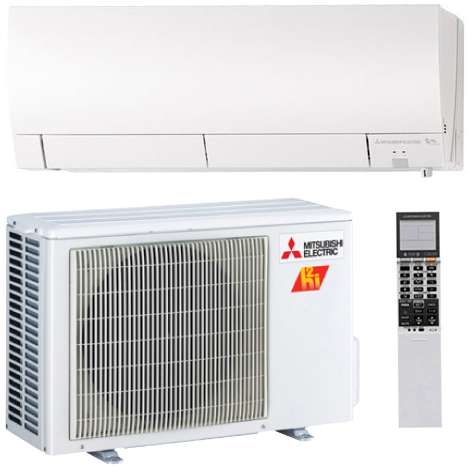

| Model | FH06 [½ ton] | FH09 [¾ ton] | FH12 [1 ton] | FH15 [1¼ ton] | FH18 [1½ ton] |
|---|---|---|---|---|---|
| Indoor Unit Model | MSZ-FH06NA | MSZ-FH09NA | MSZ-FH12NA | MSZ-FH15NA | MSZ-FH18NA |
| Outdoor Unit Model | MUZ-FH06NAH | MUZ-FH09NAH | MUZ-FH12NAH | MUZ-FH15NAH | MUZ-FH18NAH |
| Cooling Capacity (Btu/h) (Min to Max) | 1,700 to 9,000 | 1,700 to 12,000 | 2,500 to 13,600 | 6,450 to 19,000 | 6,450 to 21,000 |
| Heating Capacity (Btu/h) (Min to Max) | 1,600 to 14,000 | 1,600 to 18,000 | 3,700 to 21,000 | 5,150 to 24,000 | 5,150 to 30,000 |
| ENERGY STAR® Certified | Certified | Certified | Certified | Certified | Certified |
| SEER | 33.1 | 30.5 | 26.1 | 22 | 21 |
| HSPF (IV) | 12.5 | 11.5 | 11 | 11 | |
| Power Supply | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz |
| Outdoor Temperatures for Cooling (Min to Max) | -10 to 46°C | -10 to 46°C | -10 to 46°C | -10 to 46°C | -10 to 46°C |
| Outdoor Temperatures for Heating (Min to Max) | -25 to 24°C (Hyper Heat) | -25 to 24°C (Hyper Heat) | -25 to 24°C (Hyper Heat) | -25 to 24°C (Hyper Heat) | -25 to 24°C (Hyper Heat) |

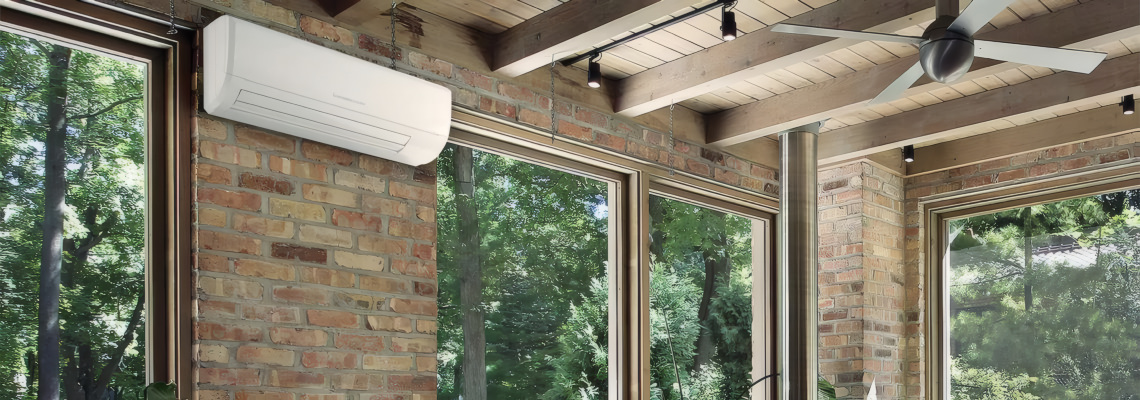

| Model | MSZ-GL09 [¾ ton] | MSZ-GL12 [1 ton] | MSZ-GL15 [1¼ ton] | MSZ-GL18 [1½ ton] | MSZ-GL24 [2 tons] |
|---|---|---|---|---|---|
| Indoor Unit Model | MSZ-GL09NA | MSZ-GL12NA | MSZ-GL15NA | MSZ-GL18NAH | MSZ-GL24NA |
| Outdoor Unit Model | MUZ-GL09NAH-U1 | MUZ-GL12NAH-U1 | MUZ-GL15NAH-U1 | MUZ-GL18NAH-U1 | MUZ-GL24NAH-U1 |
| Cooling Capacity (Btu/h) (Min to Max) | 3,600 to 12,200 | 1,500 to 13,600 | 3,100 to 18,200 | 5,800 to 22,000 | 8,200 to 31,400 |
| Heating Capacity (Btu/h) (Min to Max) | 4,500 to 15,900 | 2,000 to 18,100 | 4,800 to 20,900 | 5,400 to 25,200 | 7,500 to 36,900 |
| ENERGY STAR® Certified | Certified | Certified | Certified | Certified | Certified |
| SEER | 24.6 | 23.1 | 21.6 | 20.5 | 20.5 |
| HSPF (IV) | 11.8 | 11.5 | 10.8 | 10.2 | 10 |
| Power Supply | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz |
| Outdoor Temperatures for Cooling (Min to Max) | -10 to 46°C | -10 to 46°C | -10 to 46°C | -10 to 46°C | -10 to 46°C |
| Outdoor Temperatures for Heating (Min to Max) | -20 to 24°C | -20 to 24°C | -20 to 24°C | -20 to 24°C | -20 to 24°C |
| Model | MSZ-D30 [2½ tons] | MSZ-D36 [3 tons] |
|---|---|---|
| Indoor Unit Model | MSZ-D30NA | MSZ-D36NA |
| Outdoor Unit Model | MUZ-D30NA | MUZ-D36NA |
| Cooling Capacity (Btu/h) (Min to Max) | 9,800 to 30,700 | 9,800 to 33,200 |
| Heating Capacity (Btu/h) (Min to Max) | 8,700 to 34,000 | 8,700 to 36,000 |
| ENERGY STAR® Certified | No | No |
| SEER | 14.5 | 15.1 |
| HSPF (IV) | 8.2 | 8.2 |
| Power Supply | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz |
| Outdoor Temperatures for Cooling (Min to Max) | -10 to 46°C | -10 to 46°C |
| Outdoor Temperatures for Heating (Min to Max) | -10 to 24°C | -10 to 24°C |

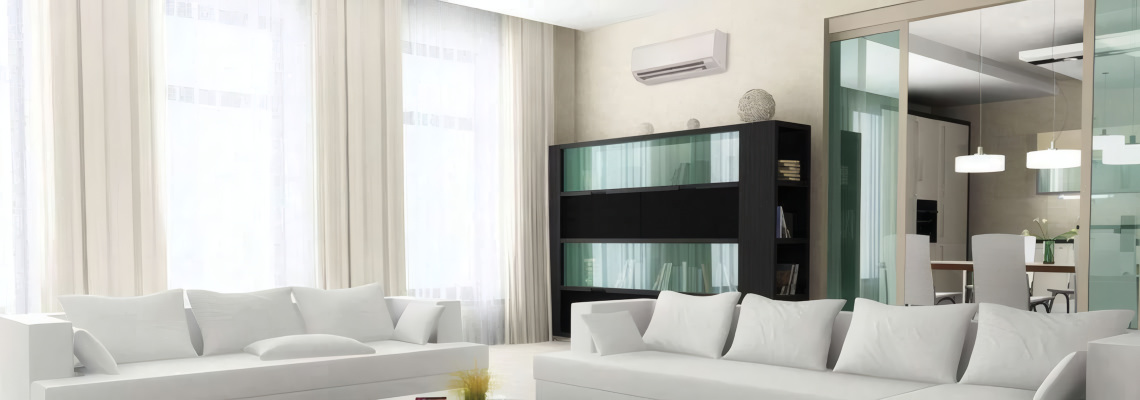

| Model | JP09WA [¾ ton] | JP12WA [1 ton] |
|---|---|---|
| Indoor Unit Model | MSZ-JP09WA | MSZ-JP12WA |
| Outdoor Unit Model | MUZ-JP09WA | MUZ-JP12WA |
| Cooling Capacity (Btu/h) (Min to Max) | 3,800 to 10,000 | 3,800 to 12,200 |
| Heating Capacity (Btu/h) (Min to Max) | 4,500 to 11,800 | 4,500 to 14,500 |
| ENERGY STAR® Certified | Certified | Certified |
| SEER | 17 | 17 |
| Power Supply | 120 V, Single-Phase, 60 Hz | 120 V, Single-Phase, 60 Hz |
| Outdoor Temperatures for Cooling (Min to Max) | -10 to 46°C | -10 to 46°C |
| Outdoor Temperatures for Heating (Min to Max) | -20 to 24°C | -20 to 24°C |

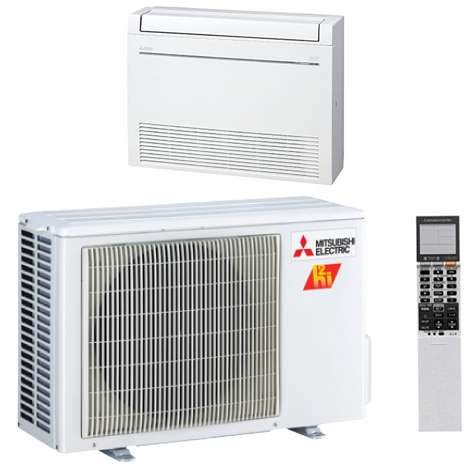

| Model | MFZ-KJ09 [¾ ton] | MFZ-KJ12 [1 ton] | MFZ-KJ15 [1¼ ton] | MFZ-KJ18 [1½ ton] |
|---|---|---|---|---|
| Indoor Unit Model | MFZ-KJ09NA | MFZ-KJ12NA | MFZ-KJ15NA | MFZ-KJ18NA |
| Outdoor Unit Model | MUFZ-KJ09NAHZ | MUFZ-KJ12NAHZ | MUFZ-KJ15NAHZ | MUFZ-KJ18NAHZ |
| Cooling Capacity (Btu/h)(Min to Max) | 2,300 to 14,000 | 2,300 to 15,000 | 5,300 to 19,000 | 5,300 to 22,500 |
| Heating Capacity (Btu/h) (Min to Max) | 2,900 to 19,000 | 2,900 to 22,800 | 5,700 to 25,000 | 5,700 to 29,000 |
| ENERGY STAR® Certified | Certified | Certified | Certified | Certified |
| SEER | 28.2 | 25.5 | 21.8 | 21 |
| HSPF (IV) | 13 | 12 | 11.6 | 11.3 |
| Power Supply | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz |
| Outdoor Temperatures for Cooling (Min to Max) | -10 to 46°C | -10 to 46°C | -10 to 46°C | -10 to 46°C |
| Outdoor Temperatures for Heating (Min to Max) | -25 to 24°C (Hyper Heat) | -25 to 24°C (Hyper Heat) | -25 to 24°C (Hyper Heat) | -25 to 24°C (Hyper Heat) |

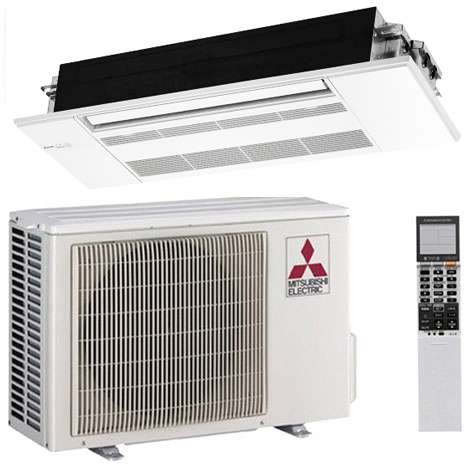

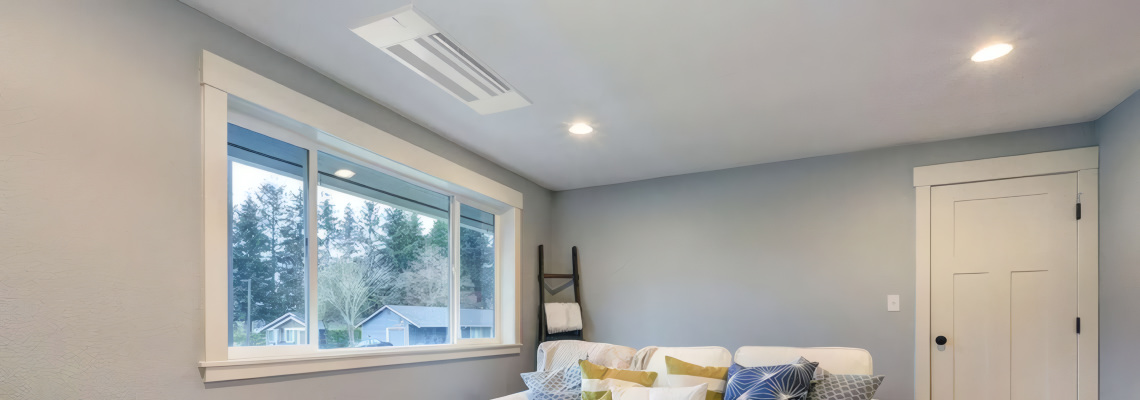

| Model | MLZ-KP09 [¾ ton] | MLZ-KP12 [1 ton] | MLZ-KP18 [1½ ton] |
|---|---|---|---|
| Indoor Unit Model | MLZ-KP09NA | MLZ-KP12NA | MLZ-KP18NA |
| Outdoor Unit Model | SUZ-KA09NAHZ | SUZ-KA12NAHZ | SUZ-KA18NAHZ |
| Cooling Capacity (Btu/h) (Min to Max) | 4,800 to 9,000 | 5,270 to 12,000 | 8,740 to 16,700 |
| Heating Capacity (Btu/h) (Min to Max) | 8,300 to 14,000 | 7,800 to 18,000 | 8,500 to 22,000 |
| ENERGY STAR® Certified | Certified | Certified | Certified |
| SEER | 18.9 | 19 | 18.8 |
| HSPF (IV) | 11 | 10.2 | 10 |
| Power Supply | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz |
| Outdoor Temperatures for Cooling (Min to Max) | -10 to 46°C | -10 to 46°C | -10 to 46°C |
| Outdoor Temperatures for Heating (Min to Max) | -25 to 24°C (Hyper Heat) | -25 to 24°C (Hyper Heat) | -25 to 24°C (Hyper Heat) |
The Mitsubishi Electric MLZ-KP series also available in non-hyper-heat ZUBA version with similar specifications with minimum outdoor temperatures of -20°C for heating. Outdoor units model names end in NAH2 instead of NAHZ.

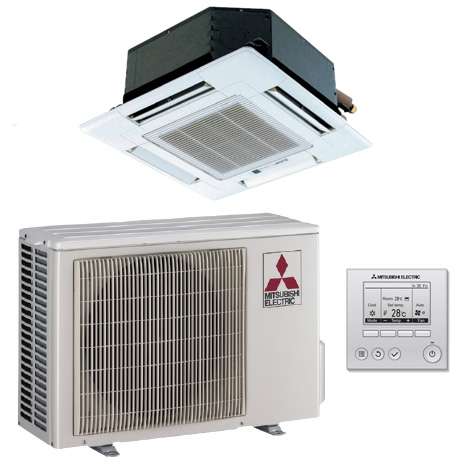

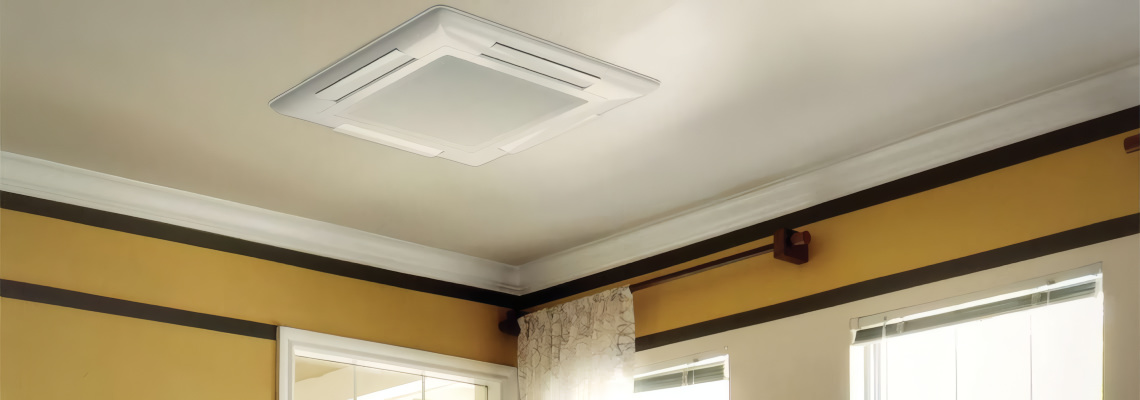

| Model | SLZ-KF09 [¾ ton] | SLZ-KF12 [1 ton] | SLZ-KF15 [1¼ ton] | SLZ-KF18 [1½ ton] |
|---|---|---|---|---|
| Indoor Unit Model Number | SLZ-KF09NA | SLZ-KF12NA | SLZ-KF15NA | SLZ-KF18NA |
| Outdoor Unit Model Number | SUZ-KA09NAHZ | SUZ-KA12NAHZ | SUZ-KA15NAHZ | SUZ-KA18NAHZ |
| Cooling Capacity (Btu/h) (Min to Max) | 4,800 to 9,000 | 5,070 to 12,000 | 8,500 to 13,700 | 9,010 to 16,800 |
| Heating Capacity (Btu/h) (Min to Max) | 7,400 to 13,200 | 7,800 to 14,500 | 8,300 to 19,000 | 8,300 to 20,000 |
| ENERGY STAR® Certified | Certified | Certified | Certified | Certified |
| SEER | 20.2 | 20.3 | 17.7 | 19 |
| HSPF | 10 | 10 | 9 | 9.4 |
| Power Supply | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz |
| Outdoor Temperatures for Cooling (Min to Max) | -10 to 46°C | -10 to 46°C | -10 to 46°C | -10 to 46°C |
| Outdoor Temperatures for Heating (Min to Max) | -20 to 24°C | -20 to 24°C | -20 to 24°C | -20 to 24°C |
The Mitsubishi Electric SLZ-KF series also available in non-hyper-heat ZUBA version with similar specifications with minimum outdoor temperatures of -20°C for heating. Outdoor units model names end in NAH2 instead of NAHZ.

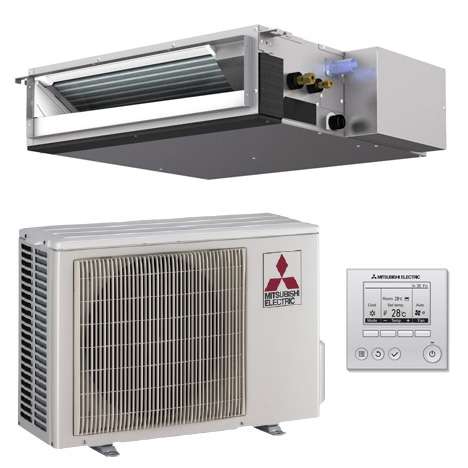

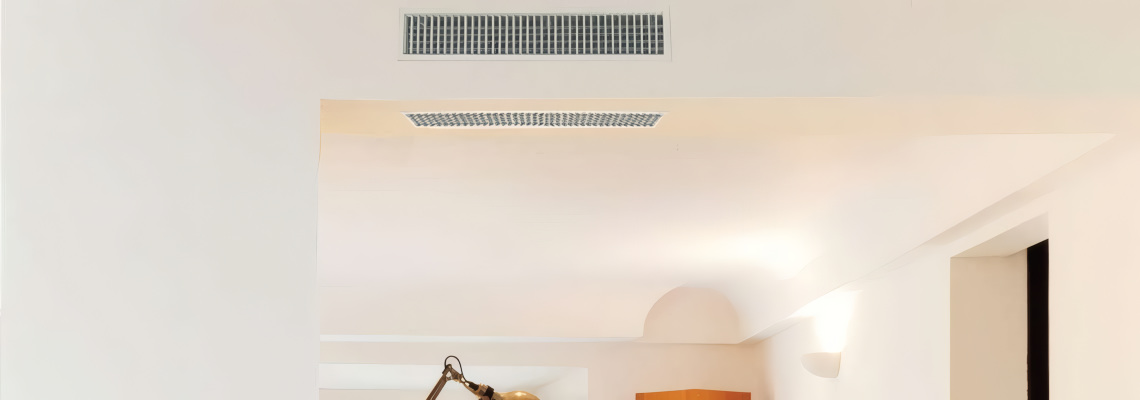

| Model | SEZ-KD09 [¾ ton] | SEZ-KD12 [1 ton] | SEZ-KD15 [1¼ ton] | SEZ-KD18 [1½ ton] |
|---|---|---|---|---|
| Indoor Unit Model | SEZ-KD09NA | SEZ-KD12NA | SEZ-KD15NA | SEZ-KD18NA |
| Outdoor Unit Model | SUZ-KA09NAHZ | SUZ-KA12NAHZ | SUZ-KA15NAHZ | SUZ-KA18NAHZ |
| Cooling Capacity (Btu/h) (Min to Max) | 4,500 to 9,000 | 5,210 to 12,000 | 9,000 to 15,000 | 9,200 to 18,000 |
| Heating Capacity (Btu/h) (Min to Max) | 8,100 to 13,300 | 7,700 to 18,000 | 8,600 to 22,400 | 8,800 to 28,000 |
| ENERGY STAR® Certified | Certified | Certified | Certified | Certified |
| SEER | 17.3 | 19 | 17.3 | 19.1 |
| HSPF (IV) | 9.8 | 10.2 | 9.5 | 10.9 |
| Power Supply | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz |
| Outdoor Temperatures for Cooling (Min to Max) | -10 to 46°C | -10 to 46°C | -10 to 46°C | -10 to 46°C |
| Outdoor Temperatures for Heating (Min to Max in) | -25 to 24°C (Hyper Heat) | -25 to 24°C (Hyper Heat) | -25 to 24°C (Hyper Heat) | -25 to 24°C (Hyper Heat) |
The Mitsubishi Electric SEZ-KD series also available in non-hyper-heat ZUBA version with similar specifications with minimum outdoor temperatures of -20°C for heating. Outdoor units model names end in NAH2 instead of NAHZ.
| Model | PEAD-A09 | PEAD-A12 | PEAD-A15 | PEAD-A18 | PEAD-A24 | PEAD-A30 | PEAD-A36 |
|---|---|---|---|---|---|---|---|
| Indoor Unit Model | PEAD-A09AA7 | PEAD-A12AA7 | PEAD-A15AA7 | PEAD-A18AA7 | PEAD-A24AA7 | PEAD-A30AA7 | PEAD-A36AA7 |
| Outdoor Unit Model | SUZ-KA09NAHZ | SUZ-KA12NAHZ | SUZ-KA15NAHZ | SUZ-KA18NAHZ | SUZ-KA24NAHZ | SUZ-KA30NAHZ | SUZ-KA36NAHZ |
| Cooling Capacity (Btu/h) (Min to Max) | 5,000 to 9,000 | 5,770 to 12,000 | 9,600 to 15,000 | 9,320 to 18,000 | 10,000 to 24,000 | 14,600 to 30,000 | 15,600 to 33,000 |
| Heating Capacity (Btu/h) (Min to Max) | 8,200 to 14,000 | 7,900 to 18,000 | 8,800 to 23,000 | 8,800 to 28,000 | 10,000 to 28,000 | 14,700 to 34,000 | 17,400 to 40,000 |
| ENERGY STAR® Certified | Certifiied | Certifiied | Certifiied | Certifiied | No | Certifiied | Certifiied |
| SEER | 17.8 | 19.3 | 18.3 | 18.9 | 15 | 15 | 15 |
| HSPF (IV) | 10.8 | 11 | 9.9 | 10.8 | 9 | 9 | 9 |
| Power Supply | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz |
| Outdoor Temperatures for Cooling (Min to Max) | -10 to 46°C | -10 to 46°C | -10 to 46°C | -18 to 46°C | -18 to 46°C | -18 to 46°C | -18 to 46°C |
| Outdoor Temperatures for Heating (Min to Max in) | -25 to 24°C | -25 to 24°C | -25 to 24°C | -25 to 24°C | -25 to 24°C | -25 to 24°C | -25 to 24°C |
The Mitsubishi Electric PEAD-A series also available in non-hyper-heat ZUBA version with similar specifications with minimum outdoor temperatures of -20°C for heating. Outdoor units model names end in NAH2 instead of NAHZ.

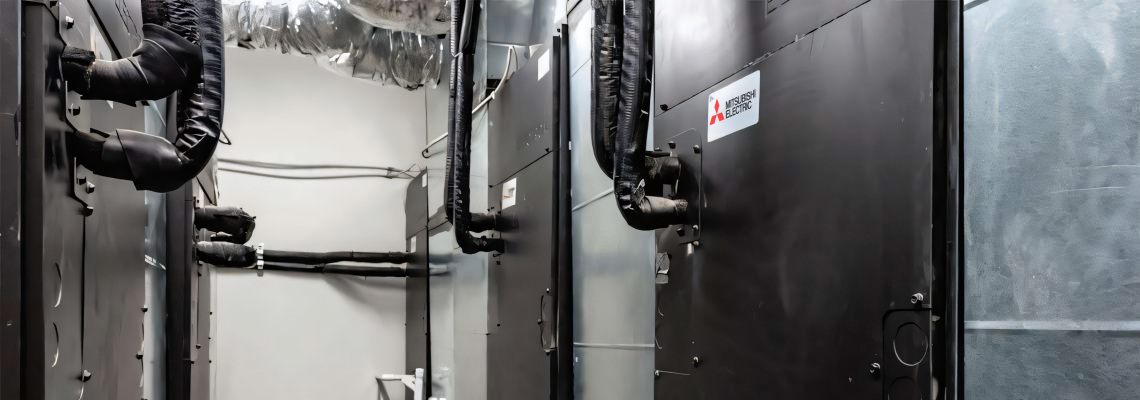

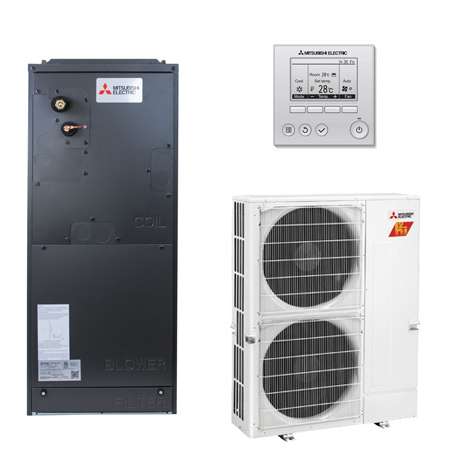

| Model | PVA-A24 [2 tons] | PVA-A30 [2½ tons] | PVA-A36 [3 tons] | PVA-A42 [3½ tons] |
|---|---|---|---|---|
| Indoor Unit Model | PVA-A24KAA7 | PVA-A30KAA7 | PVA-A36KAA7 | PVA-A42KAA7 |
| Outdoor Unit Model | PUZ-HA24NHA1 | PUZ-HA30NKA | PUZ-HA36NKA | PUZ-HA42NHA1 |
| Cooling Capacity (Btu/h) (Min to Max) | 10,000 to 24,000 | 14,800 to 30,000 | 15,500 to 33,000 | 17,000 to 42,000 |
| Heating Capacity (Btu/h) (Min to Max) | 10,000 to 28,000 | 14,800 to 34,000 | 18,600 to 40,000 | 23,900 to 54,000 |
| ENERGY STAR® Certified | No | Certifiied | Certifiied | No |
| SEER | 19 | 18 | 18.2 | 15.4 |
| HSPF (IV) | 10.4 | 9.8 | 11.2 | 10 |
| Power Supply | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz |
| Outdoor Temperatures for Cooling (Min to Max) | -18 to 46°C | -18 to 46°C | -18 to 46°C | -18 to 46°C |
| Outdoor Temperatures for Heating (Min to Max in) | -25 to 24°C (Hyper Heat) | -25 to 24°C (Hyper Heat) | -25 to 24°C (Hyper Heat) | -25 to 24°C (Hyper Heat) |
| Model | SVZ-KP12 | SVZ-KP18 | SVZ-KP24 | SVZ-KP30 | SVZ-KP36 |
|---|---|---|---|---|---|
| Indoor Unit Model | SVZ-KP12NA | SVZ-KP18NA | SVZ-KP24NA | SVZ-KP30NA | SVZ-KP36NA |
| Outdoor Unit Model | SUZ-KA12NAHZ | SUZ-KA18NAHZ | SUZ-KA24NAHZ | SUZ-KA30NAHZ | SUZ-KA36NAHZ |
| Cooling Capacity (Btu/h) (Min to Max) | 4,300 to 12,000 | 6,200 to 18,000 | 12,400 to 24,000 | 13,500 to 27,000 | 11,600 to 33,000 |
| Heating Capacity (Btu/h) (Min to Max) | 4,700 to 16,700 | 8,300 to 26,000 | 14,600 to 28,000 | 12,640 to 33,000 | 13,260 to 36,000 |
| ENERGY STAR® Certified | Certified | Certified | Certified | Certified | No |
| SEER | 18 | 18 | 18 | 18 | 16 |
| HSPF (IV) | 12.1 | 12.6 | 10.4 | 13.6 | 11.7 |
| Power Supply | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz |
| Outdoor Temperatures for Cooling (Min to Max) | -10 to 46°C | -10 to 46°C | -10 to 46°C | -10 to 46°C | -10 to 46°C |
| Outdoor Temperatures for Heating (Min to Max in) | -25 to 24°C | -25 to 24°C | -25 to 24°C | -25 to 24°C | -25 to 24°C |
The Mitsubishi Electric SVZ series also available in non-hyper-heat ZUBA version with similar specifications with minimum outdoor temperatures of -21°C or -10°C for heating. Outdoor units model names end in NAH2 instead of NAHZ.

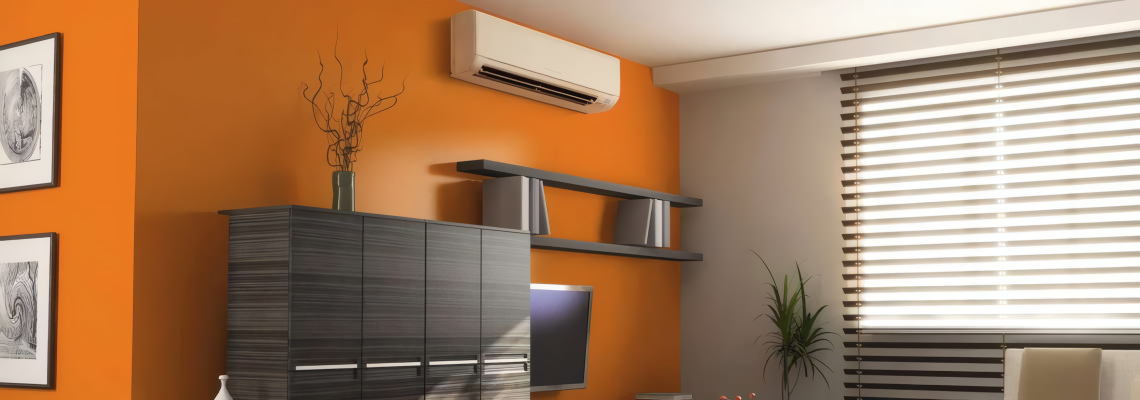

| Model | A09WA [¾ ton] | A12WA [1 ton] |
|---|---|---|
| Indoor Unit Model | MS-A09WA-1 | MS-A12WA-1 |
| Outdoor Unit Model | MU-A09WA | MU-A12WA |
| Rated Cooling Capacity (Btu/h) (Nominal) | 9,500 | 12,000 |
| ENERGY STAR® Certified | No | No |
| SEER | 13 | 13 |
| Power Supply | 120 V, Single-Phase, 60 Hz | 120 V, Single-Phase, 60 Hz |
| Outdoor Temperatures for Cooling (Min to Max) | 19.5 to 46°C | 19.5 to 46°C |
| Model | MSY-GL09 [¾ ton] | MSY-GL12 [1 ton] | MSY-GL15 [1¼ ton] | MSY-GL18 [1½ ton] | MSY-GL24 [2 tons] |
|---|---|---|---|---|---|
| Indoor Unit Model | MSY-GL09NA | MSY-GL12NA | MSY-GL15NA | MSY-GL18NA | MSY-GL24NA |
| Outdoor Unit Model | MUY-GL09NA | MUY-GL12NA | MUY-GL15NA | MUY-GL18NA | MUY-GL24NA |
| Cooling Capacity (Btu/h) (Min to Max) | 3,600 to 12,200 | 1,500 to 13,600 | 3,100 to 18,200 | 5,800 to 22,000 | 8,200 to 31,400 |
| ENERGY STAR® Certified | Certifiied | Certifiied | Certifiied | Certifiied | Certifiied |
| SEER | 24.6 | 23.1 | 21.6 | 20.5 | 20.5 |
| Power Supply | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz |
| Outdoor Temperatures for Cooling (Min to Max) | -10 to 46°C | -10 to 46°C | -10 to 46°C | -10 to 46°C | -10 to 46°C |
| Model | MSY-D30 [2½ tons] | MSY-D36 [3 tons] |
|---|---|---|
| Indoor Unit Model Number | MSY-D30NA | MSY-D36NA |
| Outdoor Unit Model Number | MUY-D30NA | MUY-D36NA |
| Cooling Capacity (Btu/h) (Min to Max) | 9,800 to 30,700 | 9,800 to 34,600 |
| ENERGY STAR® Certified | No | No |
| SEER | 16 | 15.1 |
| Power Supply | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz |
| Outdoor Temperatures for Cooling (Min to Max) | -10 to 46°C | -10 to 46°C |

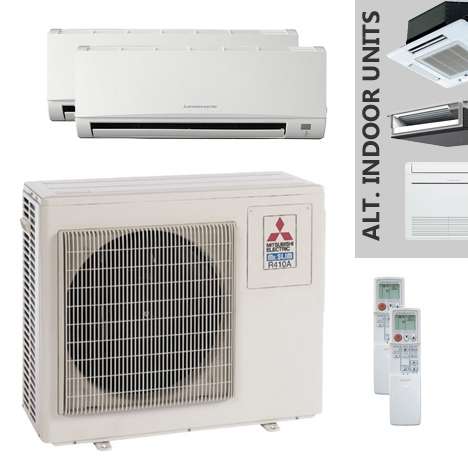

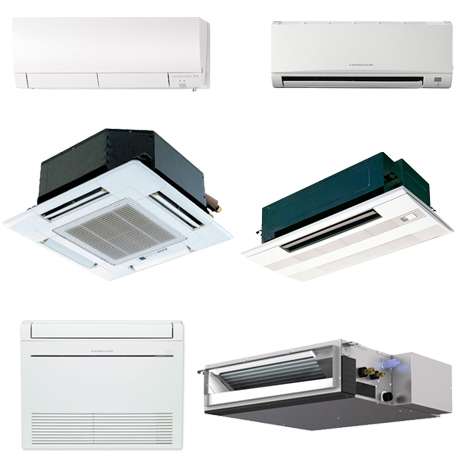

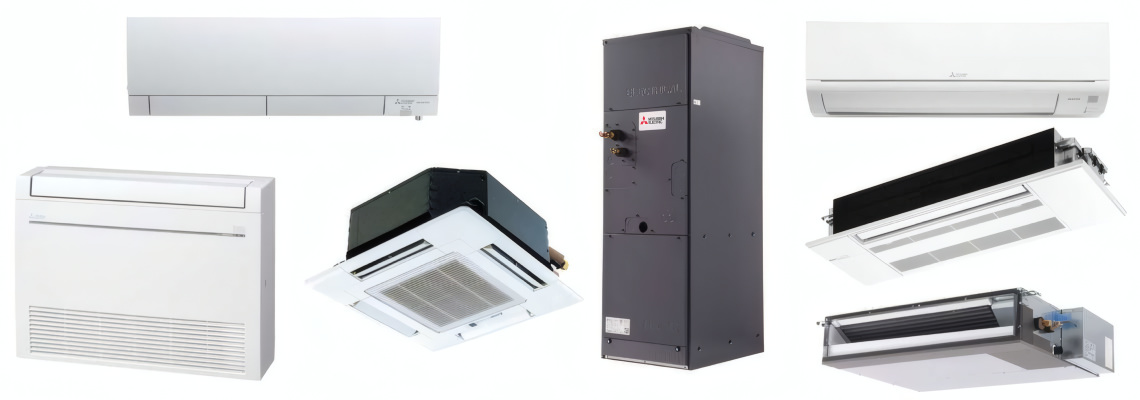

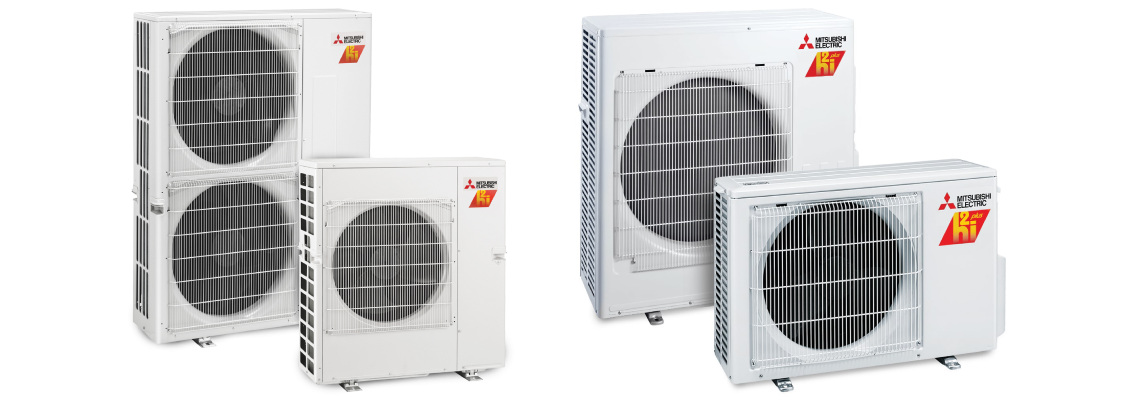

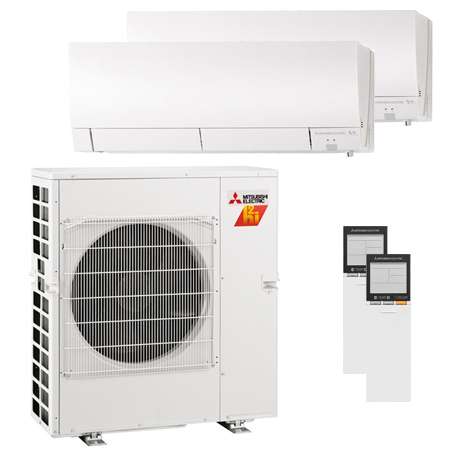

| Model | 2C20 | 3C24 | 3C30 | 4C36 | 5C42 | 8C48 |
|---|---|---|---|---|---|---|
| Outdoor Unit Model Number | MXZ-2C20NA2 | MXZ-3C24NA2 | MXZ-3C30NA2 | MXZ-4C36NA2 | MXZ-5C42NA2 | MXZ-8C48NA |
| Rated Cooling Capacity (Btu/h) (Nominal) | 18,000 [1½ tons] | 22,000 [1¾ tons] | 28,400 [2¼ tons] | 35,400 [3 tons] | 40,500 [3½ tons] | 48,000 [4 tons] |
| Rated Heating Capacity (Btu/h) (Nominal) | 19,800 [1¾ tons] | 23,500 [2 tons] | 26,900 [2½ tons] | 33,900 [3 tons] | 39,800 [3¾ tons] | 53,000 [4½ tons] |
| Connectable Indoor Units | 1 to 2 | 2 to 3 | 2 to 3 | 2 to 4 | 2 to 5 | 2 to 8 |
| ENERGY STAR® Certified | Certifiied | Certifiied | No | No | No | No |
| SEER (non-ducted) | 20 | 19 | 19.2 | 19.7 | 18.9 | |
| HSPF (non-ducted) | 10 | 9.8 | 10.6 | 11 | 10.3 | 11.4 |
| Power Supply | 208/230 V, Single Phase, 60 Hz | 208/230 V, Single Phase, 60 Hz | 208/230 V, Single Phase, 60 Hz | 208/230 V, Single Phase, 60 Hz | 208/230 V, Single Phase, 60 Hz | 208/230 V, Single Phase, 60 Hz |
| Outdoor Temperatures for Cooling (Min to Max) | -10 to 46 °C | -10 to 46 °C | -10 to 46 °C | -10 to 46 °C | -10 to 46 °C | -15 to 46°C |
| Outdoor Temperatures for Heating (Min to Max) | -15 to 24 °C | -15 to 24 °C | -15 to 24 °C | -15 to 24 °C | -15 to 24 °C | -20 to 21 °C |
| Popular Combinations | Please see brochure | Please see brochure | Please see brochure | Please see brochure | Please see brochure | Please see brochure |
| Model | 2C20 NAHZ | 3C24 NAHZ | 3C30 NAHZ | 4C36 NAHZ | 5C42 NAHZ | 8C48 NAHZ |
|---|---|---|---|---|---|---|
| Outdoor Unit Model Number | MXZ-2C20NAHZ2 | MXZ-3C24NAHZ2 | MXZ-3C30NAHZ2 | MXZ-4C36NAHZ | MXZ-5C42NAHZ | MXZ-8C48NAHZ |
| Rated Cooling Capacity (Btu/h) (Nominal) | 18,000 [1½ tons] | 22,000 [1¾ tons] | 28,400 [2¼ tons] | 36,000 [3 tons] | 42,000 [3½ tons] | 48,000 [4 tons] |
| Rated Heating Capacity (Btu/h) (Nominal) | 19,800 [1¾ tons] | 22,500 [2 tons] | 23,100 [2½ tons] | 45,000 [3¾ tons] | 48,000 [4 tons] | 54,000 [4½ tons] |
| Connectable Indoor Units | 2 | 2 to 3 | 2 to 3 | 2 to 4 | 2 to 5 | 2 to 8 |
| ENERGY STAR® Certified | Certifiied | Certifiied | Certifiied | Certifiied | Certifiied | Certifiied |
| SEER (non-ducted) | 17 | 19 | 18 | 20 | 20 | 20 |
| HSPF (non-ducted) | 9.8 | 10 | 11 | 11.3 | 11 | 11.5 |
| Power Supply | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz | 208/230 V, Single-Phase, 60 Hz |
| Outdoor Temperatures for Cooling (Min to Max) | -10 to 46°C | -10 to 46°C | -10 to 46°C | -5 to 46°C | -5 to 46°C | -5 to 46°C |
| Outdoor Temperatures for Heating (Min to Max) | -25 to 24°C | -25 to 24°C | -25 to 24°C | -25 to 24°C | -25 to 24°C | -25 to 24°C |
| Popular Combinations | Please see brochure | Please see brochure | Please see brochure | Please see brochure | Please see brochure | Please see brochure |
| FS Wall Mount | FS06 | FS09 | FS12 | FS15 | FS18 | ||
|---|---|---|---|---|---|---|---|
| Indoor Unit Model Number | MSZ-FS06NA | MSZ-FS09NA | MSZ-FS12NA | MSZ-FS15NA | MSZ-FS18NA | ||
| Rated Cooling Capacity (Btu/h) | 6,000 [½ ton] | 9,000 [¾ tons] | 12,000 [1 ton] | 14,000 [1¼ tons] | 17,200 [1½ tons] | ||
| FH Wall Mount | FH06 | FH09 | FH12 | FH15 | FH18 | ||
| Indoor Unit Model Number | MSZ-FH06NA | MSZ-FH09NA | MSZ-FH12NA | MSZ-FH15NA | MSZ-FH18NA | ||
| Rated Cooling Capacity (Btu/h) | 6,000 [½ ton] | 9,000 [¾ tons] | 12,000 [1 ton] | 15,000 [1¼ tons] | 17,200 [1½ tons] | ||
| MSZ Wall Mount | GL06 | GL09 | GL12 | GL15 | GL18 | GL24 | |
| Indoor Unit Model Number | MSZ-GL06NA | MSZ-GL09NA | MSZ-GL12NA | MSZ-GL15NA | MSZ-GL18NA | MSZ-GL24NA | |
| Rated Cooling Capacity (Btu/h) | 6,000 [½ tons] | 9,000 [¾ tons] | 12,000 [1 ton] | 14,000 [1¼ tons] | 18,000 [1½ tons] | 22,500 [2 tons] | |
| MFZ Floor Standing | MFZ09 | MFZ12 | MFZ15 | MFZ18 | |||
| Indoor Unit Model Number | MFZ-KJ09NA | MFZ-KJ12NA | MFZ-KJ15NA | MFZ-KJ18NA | |||
| Rated Capacity (Btu/h) | 9,000 [¾ tons] | 12,000 [1 ton] | 15,000 [1¼ tons] | 17,000 [1½ tons] | |||
| SLZ 4-Way Ceiling Cassette (2′ x 2′) | SLZ09 | SLZ12 | SLZ15 | ||||
| Indoor Unit Model Number | SLZ-KF09NA | SLZ-KF12NA | SLZ-KF15NA | ||||
| Rated Capacity (Btu/h) | 9,000 [¾ tons] | 12,000 [1 ton] | 13,700 [1¼ tons] | ||||
| PLA 4-Way Ceiling Cassette (3′ x 3′) | PLA12 | PLA18 | PLA24 | PLA30 | PLA36 | ||
| Indoor Unit Model Number | PLA-A12EA7 | PLA-A18EA7 | PLA-A24EA7 | PLA-A30EA7 | PLA-A36EA7 | ||
| Rated Capacity (Btu/h) | 12,000 [1 ton] | 18,000 [1½ ton] | 24,000 [2 tons] | 30,000 [2½ tons] | 36,000 [3 tons] | ||
| SEZ Ducted (Low Static) | KD09 | KD12 | KD15 | KD18 | |||
| Indoor Unit Model Number | SEZ-KD09NA | SEZ-KD12NA | SEZ-KD15NA | SEZ-KD18NA | |||
| Rated Capacity (Btu/h) | 9,000 [¾ tons] | 12,000 [1 ton] | 15,000 [1¼ tons] | 18,000 [1½ tons] | |||
| PEAD Ducted (Medium Static) | PEAD9 | PEAD12 | PEAD15 | PEAD18 | PEAD24 | PEAD30 | PEAD36 |
| Indoor Unit Model Number | PEAD-A09AA7 | PEAD-A12AA7 | PEAD-A15AA7 | PEAD-A18AA7 | PEAD-A24AA7 | PEAD-A30AA7 | PEAD-A36AA7 |
| Rated Capacity (Btu/h) | 9,000 [¾ tons] | 12,000 [1 ton] | 15,000 [1¼ tons] | 18,000 [1½ tons] | 24,000 [2 tons] | 30,000 [2½ tons] | 33,000 [3 tons] |
| MLZ 1-Way Ceiling Cassette | MLZ9 | MLZ12 | MLZ18 | ||||
| Indoor Unit Model Number | MLZ-KP09NA | MLZ-KP12NA | MLZ-KP18NA | ||||
| Rated Capacity (Btu/h) | 9,000 [¾ tons] | 12,000 [1 ton] | 16,700 [1½ tons] | ||||
| SVZ Multi-Position Air Handler | SVZ-KP12NA | SVZ-KP18NA | MLZ-KP18 | ||||
| Indoor Unit Model Number | MLZ-KP09NA | MLZ-KP12NA | MLZ-KP18NA | ||||
| Rated Capacity (Btu/h) | 9,000 [¾ tons] | 12,000 [1 ton] | 16,700 [1½ tons] |
Talk to Go Ductless Inc. about ductless heating and cooling options for your home and get a clear estimate.
